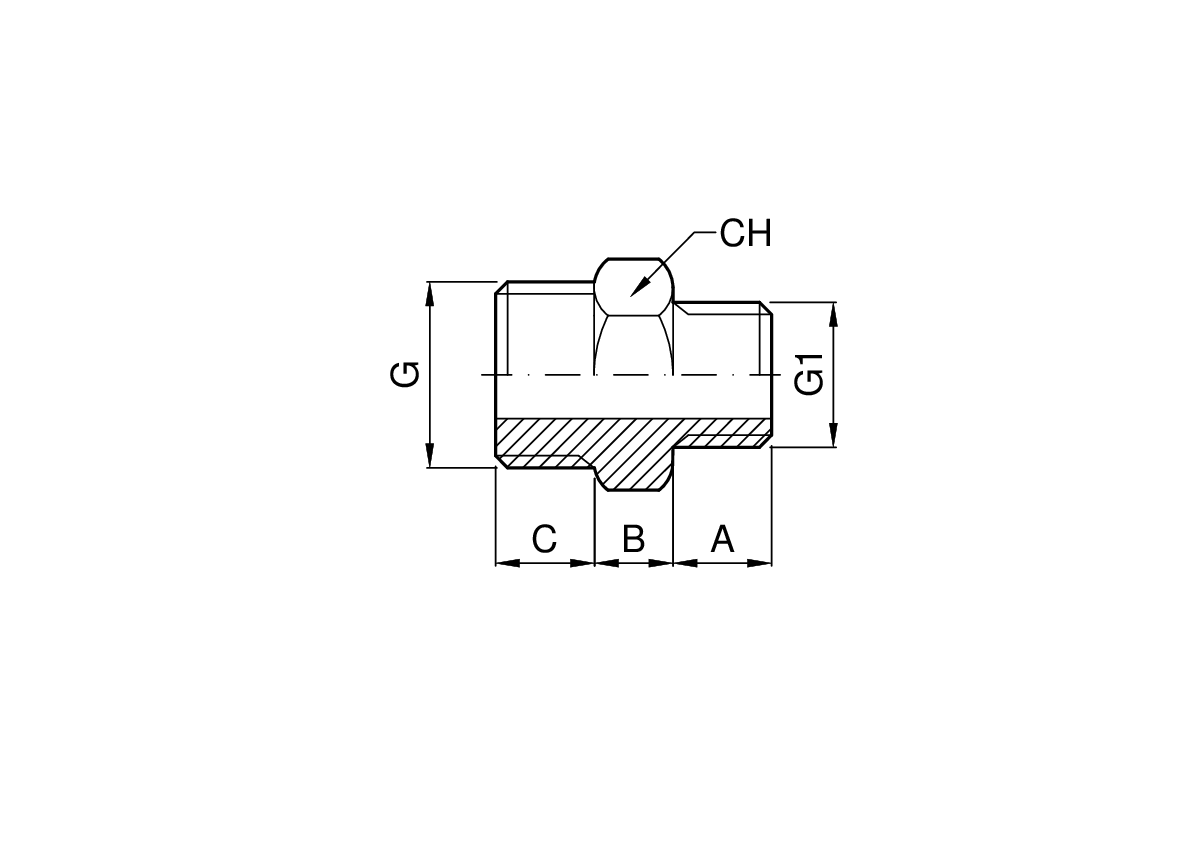

Misure del prodotto
| Codice | G inch | G1 inch | A | B | C | CH |
|---|
| 4.600.BB.04-Y | 1/4 | 1/8 | 8 | 4 | 105 | 14,5 |
| 4.600.BB.05-Y | 3/8 | 1/4 | 10,5 | 5 | 11 | 18 |
| 4.600.BB.08-Y | 1/2 | 3/8 | 11 | 5 | 14,5 | 22 |
| 4.600.BB.10-Y | 3/4 | 1/2 | 14,5 | 5,5 | 15,5 | 28 |
| 4.600.BB.13-Y | 1 | 3/4 | 15,5 | 6 | 18 | 35 |
| 4.600.BB.29-Y | 1 1/4 | 1 | 15 | 6,5 | 20,5 | 43 |
| 4.600.BB.38-Y | 1 1/2 | 1 1/4 | 20,5 | 6,5 | 20,5 | 49,5 |
| 4.600.BB.50-Y | 2 | 1 1/2 | 20,5 | 7 | 25 | 62 |
| 4.600.BB.65-Y | 2 1/2 | 2 1/4 | | | | |
| 4.600.BB.71-Y | 3 | 2 1/2 | | | | |
| | | | | | |
| 4.602.BB.05-Y | 3/8 | 1/8 | | | | |
| 4.602.BB.08-Y | 1/2 | 1/4 | 10,5 | 5 | 14,5 | 22 |
| 4.602.BB.10-Y | 3/4 | 3/8 | 11 | 5,5 | 15,5 | 28 |
| 4.602.BB.13-Y | 1 | 1/2 | 14,5 | 6 | 18 | 35 |
| 4.602.BB.29-Y | 1 1/4 | 3/4 | 15,5 | 6,5 | 20,5 | 43 |
| 4.602.BB.38-Y | 1 1/2 | 1 | 18 | 6,5 | 20,5 | 49,5 |
| 4.602.BB.50-Y | 2 | 1 1/4 | 20,5 | 7 | 25 | 62 |
| 4.602.BB.65-Y | 2 1/2 | 1 1/2 | | | | |
| 4.602.BB.71-Y | 3 | 2 | | | | |
|
